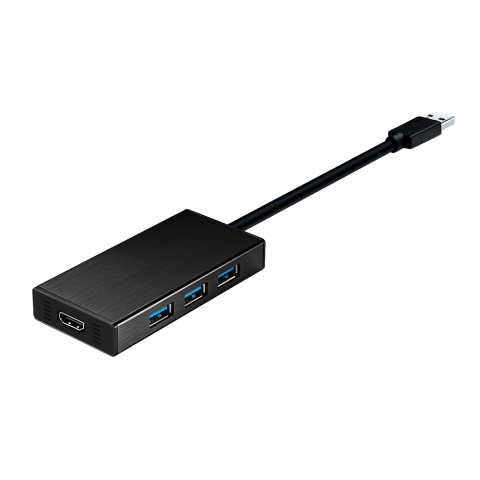

U3-H8645 USB 3.0 HDMI & 3-Port HUB
USB 3.0 HDMI & 3-Port HUB
Introduction:
The U3-H8645 USB 3.0 HDMI & 3-Port HUB acts as an external graphics card for your Mac or PC. It allows you to add an additional display and 3 USB 3.0 ports. With this multi-adapter, there is no need to open your computer to add an expensive graphics card; you simply load the drivers, plug in the adapter to the USB port, then plug the HDMI monitor cable into the adapter and you are ready. It supports three viewing modes: primary, extended, and mirror modes. With plug-and-play functionality between your computer and second monitor or projector, you will be able to create a new visual environment in seconds. This elegant multi-adapter series provides you with a fast and portable alternative solution.
Feature:
- USB 3.0 Display
- Supports display resolution: 2048 x 1152 @ 32bit
- Supports 1080p Video Playback
- Display Rotation: 0°, 90°, 180°, 270°
- Supports Display Modes: Primary, Extended, Mirror
- USB 3.0 SuperSpeed
- Multitask with larger landscape/desktop space
- 3 USB 3.0 SuperSpeed ports
- Transfer rates of up to 5Gbps enabling bulky file backup
- Backwards compatible with USB 2.0 and USB 1.1 device
- Hot-swapping connect/disconnect without powering down
- Plug & Play
- Compatible with Windows and Mac OS
Specification:
| Interface | |
|
Video Interface |
HDMI Female Connector |
|
Host Interface |
USB 3.0 Male Type-A Connector |
|
Cable Length |
14.8 cm |
|
Main Body |
42.9(W) X 87(H) X 14.2(D) Mm |
|
USB Port |
USB 3.0 Female Connector X 3 Ports |
|
Power Jack |
DC 5V (3.5mm OD, 1.35mm ID) |
|
Power Source |
Bus Powered and/or Self-Powered |
|
Power Adapter |
5V/2A power adapter (optional) |
|
Weight |
Approximately 61.5g (Including Cable) |
| Functions | |
|
Video Playback |
1080p |
|
Display Resolution |
2048 X 1152 @ 32bit |
|
Display Modes |
Primary, Extended, Mirror |
|
Display Rotation |
0°, 90°, 180°, 270° |
Note for Video Player:
- Windows XP users: Windows Media Player is recommended for video playback
- Windows XP users & Mac users: Some Windows XP & Mac products are not supported by USB 3.0 at this time, therefore we suggest USB 2.0 for office applications only; Video playback is not recommended due to USB 2.0 bandwidth limitations causing limited video performance.
System Requirements:
- Microsoft Windows 8.1, 8, 7, XP (32-bit or 63-bit)
- Mac OS 10.8 to 10.13.3
- CPU: Intel i3 Dual Core 1.5 GHZ / Intel Atom "Bay Trail" Quad Core 1.33 GHZ
- RAM: 2 GB or higher
- Available USB port (USB 3.0 is recommended)
Package Contents:
- USB 3.0 HDMI & 3-Port HUB
- Quick Installation Guide
